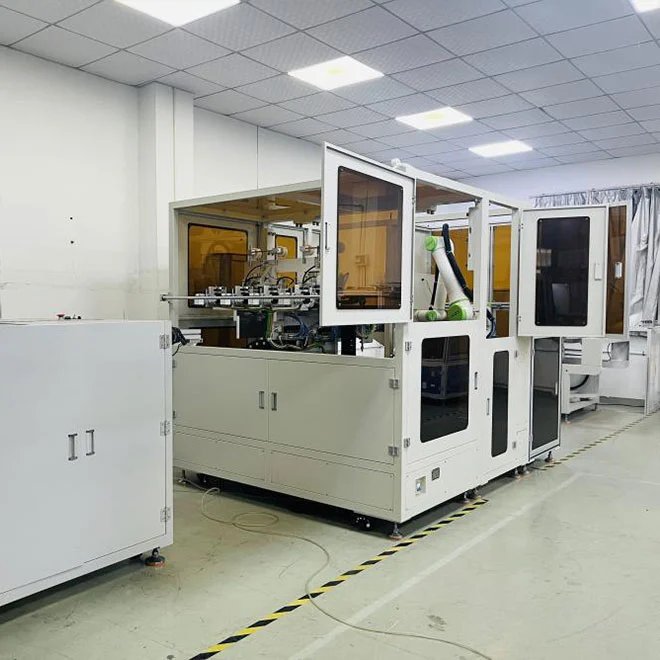

How to repair New Energy OBC Winding Machine

Repairing a New Energy OBC (On-Board Charger) Winding Machine involves a systematic approach to diagnose and fix electrical, mechanical, or software-related faults. Here’s a general guide to help you through the repair process:

Safety First

Disconnect Power – Always turn off and unplug the machine before inspecting or repairing.

Discharge Capacitors – OBC systems can store high voltage; ensure all capacitors are discharged.

1. Identify the Problem

Symptoms: Machine not starting, erratic winding, overheating, abnormal noise, etc.

Error Codes: Check for any on-screen error messages or codes in the control panel.

Logs/History: Look into machine diagnostics or software logs if available.

2. Mechanical Inspection

Check Bearings and Shafts: Look for misalignment, excessive wear, or obstructions.

Tensioning Mechanism: Ensure tension arms and spring systems are functioning correctly.

Guides and Rollers: Clean and inspect for debris or misalignment.

3. Electrical Inspection

Power Supply: Use a multimeter to check input voltages and fuses.

Motors: Inspect motor windings for continuity; replace brushes if worn.

Sensors: Verify functionality of proximity sensors, encoders, and safety interlocks.

Wiring: Look for loose connections, broken cables, or short circuits.

4. Control System & Software

PLC/HMI Check: Ensure the control logic and interface are operating.

Firmware: Make sure the firmware is up to date.

Recalibration: Sometimes resetting and recalibrating the winding parameters can resolve functional issues.

5. Replace Faulty Components

Based on diagnostics:

Replace defective motors, sensors, or power components.

Reconfigure or replace control boards if they fail startup tests.

6. Preventive Measures Post-Repair

Lubricate moving parts.

Tighten all mechanical connections.

Clean air filters and ventilation paths.

Run test cycles to ensure proper function.

Optional: Contact Manufacturer

If the machine is under warranty or uses proprietary parts/software, contact New Energy’s technical support for authorized service or replacement components.
